SINE-1 LCC

Based on 100% Estonian capital. Sine-1 LCC is a manufacturing company. We produce „SINE“ 4wd forest trailers, tined weeders(3m, 6m, 9m), springs and many other products. Our aim is to produce high-quality and well-functioning machinery for the forest industry and agriculture. „Sine“ products are well-known for their durance and good technical solutions.

Contact:
SINE-1 LCC
Lähte
Tartu vald
60502 Tartumaa

Tarmo +372 5059755
Raido +372 5067843
Arvo +372 5041483
e-mail: info@sine.ee

We produce

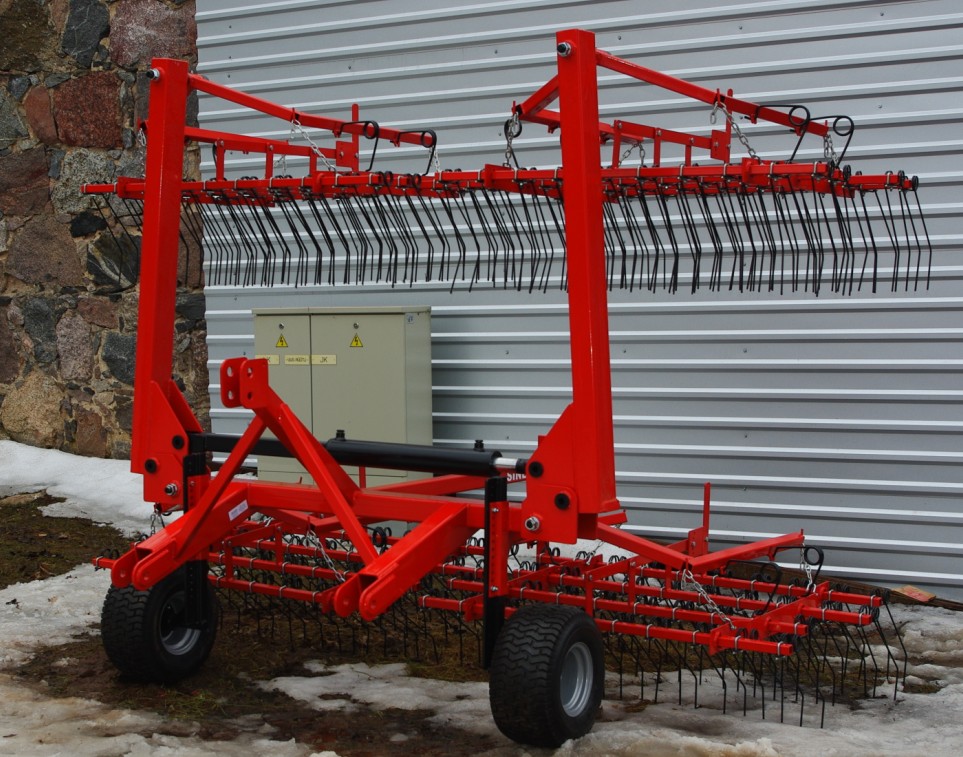

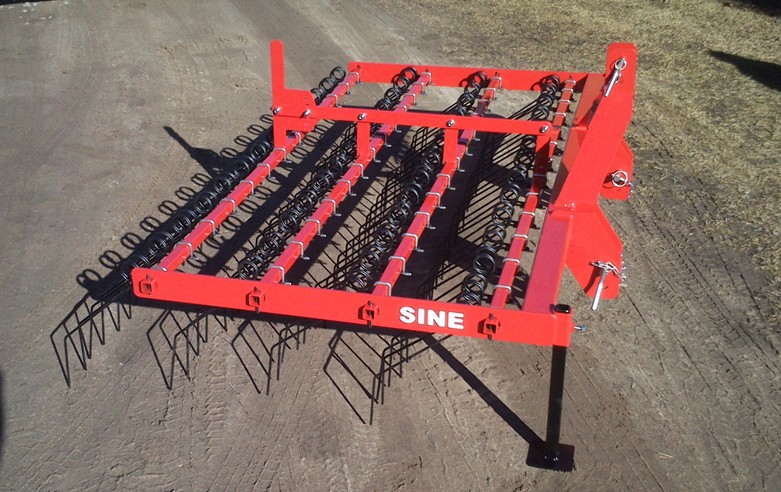

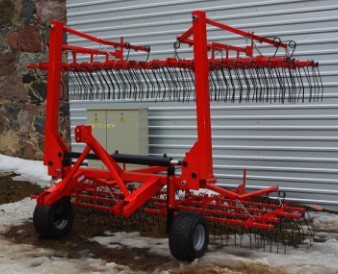

Tined Weeder

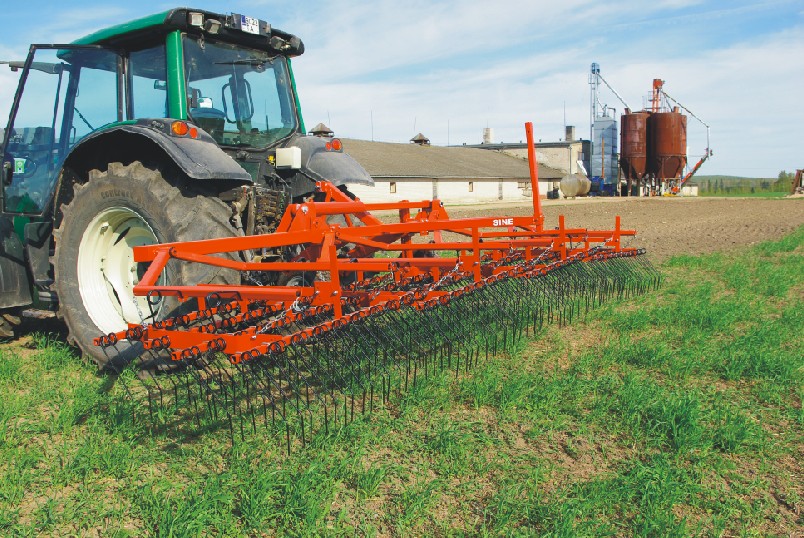

Thanks to its strong framework and varied uses (grain, broad bean, peas, potatoes, vegetables and grassland), the tined weeder is an essential cultivation implement for modern agriculture. As an alternative to chemical weed control, the weeder makes a valuable contribution to the tilling process.

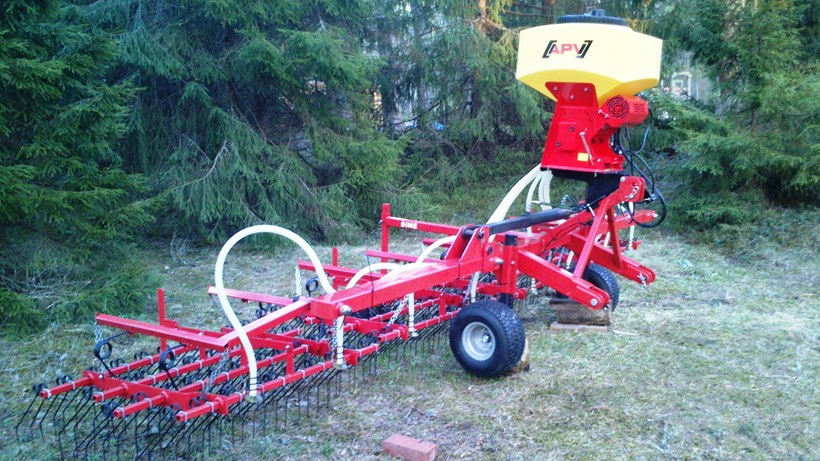

CAN BE COMBINED WITH pneumatic sowing machine !

TECHNICAL DATA

Types/Working width in cm Beds Support wheels Tines HP kW Kg (approx.) Mounting category
SINE 1,5 fixed(non-folding) 1x1,5 2 48 8 6 140 Cat. 1
SINE 3 fixed (non-folding) 2x1,5 2 96 15 11 250 Cat. 2N
Hydraulically folding
SINE 6K(sowing machine installation readiness) 4x1. 5 2 192 40 29 500 Cat. 2
SINE 9 6x1.5 4 288 60 44 880 Cat. 2
SINE 9K (contractable to 6 m. and then isit sowing machine installation) 6x1.5 4 288 60 44 880 Cat. 2 v
SINE grassland weeder (Laying On Sine6K + sowing machine) 3 x2 m - - 60 44 500 Cat.2

SINE grassland weeder, mounted front and cooperates with a tined weeder.
The grassland weeder evens out molehills and cowpies and ensures that the even spreading of organic materials.
It additionally airs the turf, tears up tangles and by currying out weeds provides new space that can be filled with precious seeds.
Grassland maintenance not only increases yields and nutrients, it reduces the growth of weeds because there is no space for them to take root.



A heavy duty trailer with mechanical traction and big 21,3-R24 tyres

The SINE F150 4WD forestry trailer has a sturdy set of bogey axles based entirely on mechanical transmission, with the power generated by the drive shaft being transmitted via a drive gear.
The gear ratio between the tractor and the trailer has been adapted in the trailer's front-end gearbox, the gear ratio of the trailer being variable by changing a pair of gear wheels or the entire gearbox. Quick attachment to/from tractor. Driving speed on public roads up to 30-40 km/h. We mainly use Russian origin bogies.

Model SINE F150
Weight, kg 4500
Carrying capacity, kg 14000
The total length, mm 6200
Length of the load area, mm ~4000 +
Width mm 2700
Ground clearance, at bogie, mm ~ 550
Recommended crane (our offer) Palms 7m -8,4m
Forest 6.5-8.4m
